Product Details
.jpg)

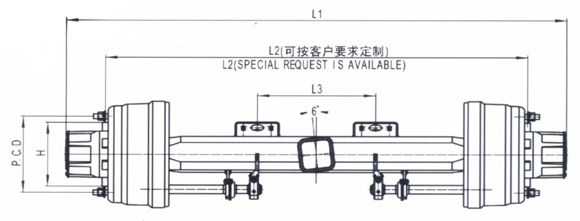

| Axle Type | 105km/h | "S" Cam Brake | Track | Centre Distance of Brake Chamber | Axle Beam | Spring seat installation | WHEEL FIXING | PCD | ΦH | Total Legnth | Recommended wheel | Weight | The Bearings Installation |
| Max. | Series x Width | L2 | L3 | L4 | Stud | L1 | |||||||
| Capacity | |||||||||||||
| Kg | mm | mm | mm | mm | mm | mm | mm | mm | inch | Kg | |||
| HS15I1-00 | 15,000 | S 410×180 | 1816 | 508 | □150 | ≤455 | 10×M22×1.5 ISO | 335 | 281 | ≈2154 | 8.00V-20 | ≈402KG | Outside 32217 |
| Inside 683-672 |
